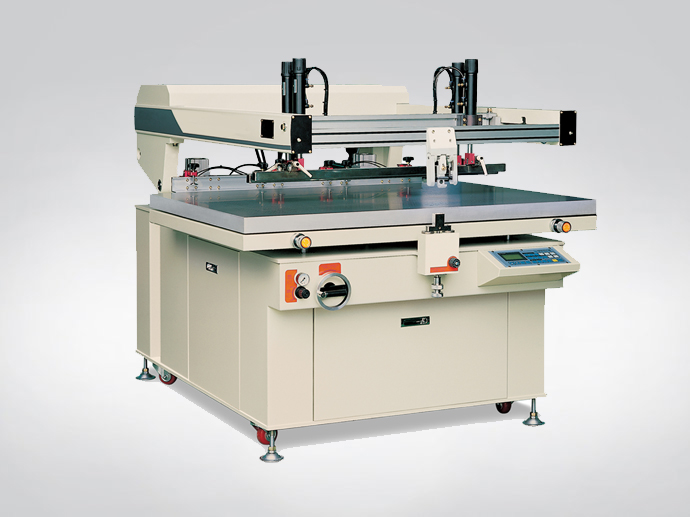

AC servo motor controlled print head stroke.
AC servo motor controlled head lifting.
Screen fixed by pneumatic method, easy to operate .
Working table with aluminum honeycomb is of light and evenness .
Quality peel off device makes squeegee and height of screen lifting simultaneously
Maintaining evenness of the working table by using aluminum alloy honeycomb
operator's safety and reduces defective rate
|
Model |
SX-680NM |
SX-8012NM |
|
Max. Printing Size |
800 X 600mm |
1200 X 800mm |
|
Printing Speed |
Max.1000 cycle/h |
Max.900 cycle/h |
|
Max. Frame Size |
1100 X 1000mm |
1500 X 1300mm |
|
Squeegee Angle |
60° ~ 90° |
|
|
Material Thickness |
0 ~ 50mm |
|
|
Air Source |
0.5~0.6Mpa |
|
|
Frame fixing |
Cylinder Clamp |
|
|
Dimension |
990 X 1700 X 1380mm |
1350 X 1900 X 1380mm |
|
Weight |
Approx.610kg |
Approx.710kg |
